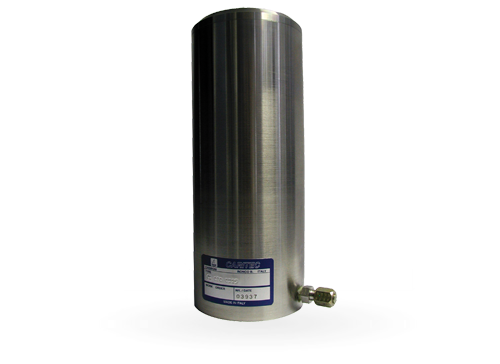

Mast Jack

MODEL Working Load Stroke Outside Ø Rod Ø Bore Working pressure Notes
kg lb mm in mm in mm in mm in bar psi
CL 060 S 0040 20000 44092 40 1.57 85 3.35 56 2.20 60 2.36 700 10000 Aluminium. Weight 4kg
CL 080 S 0125 35000 77161 125 4.92 100 3.95 60 2.36 80 3.15 700 10000 17-4-PH steel
CL 100 S 0090 55000 121254 90 3.54 130 5.12 80 3.15 100 3.94 700 10000 17-4-PH steel
