Vang

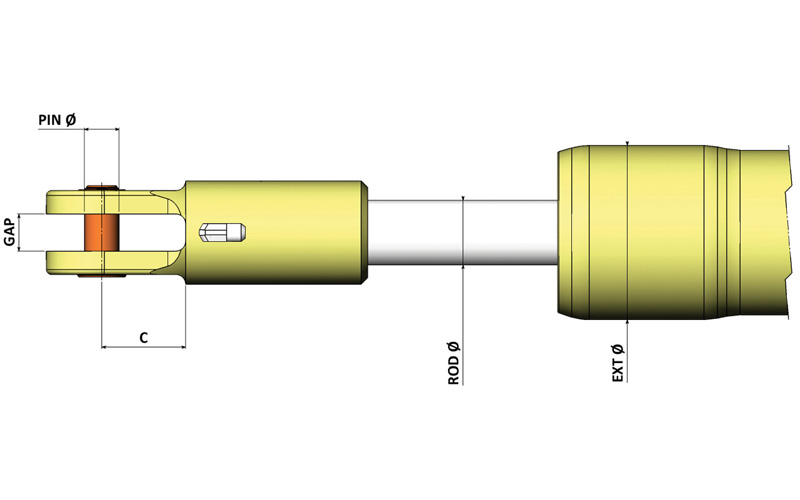

SIZE MODEL Max traction load (1) Max return force (2) Stroke Rod Ø Gap Pin C Oil vol. Weight D
kg lb kg lb mm in mm mm mm mm litres Wkg (3) a c zip
17 VNG 40 3127 6894 384 847 250 9,84 22 16,3 16,0 36,0 0,2 6 0,00204 1,7 zip
20 VNG 50 4483 9884 600 1324 280 11,02 30 16,3 15,5 32,5 0,4 8 0,00303 2,9 zip
24 VNG 60 7566 16679 865 1906 280 11,02 30 16,3 15,8 33,0 0,6 9 0,00303 3,7 zip
30 VNG 70 10897 24023 1177 2595 300 11,81 31,8 19,5 19,0 47,0 0,9 14 0,00335 8,6 zip
40 VNG 80 13450 29652 1537 3389 350 13,78 40 23,0 22,0 52,0 1,3 23 0,00511 11,6 zip
60 VNG 90 18214 40154 1945 4289 360 14,17 40 25,0 25,0 52,0 1,8 31 0,00596 11,7 zip
70 VNG 100 23538 51892 2402 5295 400 15,75 40 32,6 28,0 64,0 2,6 41 0,00681 22,9 zip
90 VNG 110 26675 58808 2906 6407 430 16,93 50,8 32,6 31,8 66,2 3,2 54 0,00766 29,2 zip
110 VNG 130 35517 78301 4059 8949 500 19,69 65 36,0 35,0 78,0 5,0 88 0,01290 51,9 zip
195 VNG 150 42803 94365 5404 11914 500 19,69 85 45,0 45,0 95,0 6,0 114 0,01915 51,5 zip
260 VNG 165 56043 123552 PUSH/PULL 526 20,71 85 50,8 50,8 112,5 11,3 134 0,02384 51,1 zip
300 VNG 180 62768 138380 7782 17156 550 21,65 100 55,0 55,0 125,0 9,7 196 0,02785 100 zip
400 VNG 200 84064 185330 9607 21180 550 21,65 100 55,0 55,0 135,0 13,0 280 0,03321 166 zip
- VNG 220 101717 224248 PUSH/PULL 600 23,62 110 60,0 60,0 148,0 22,8 363 0,03856 232 zip
- VNG 55 C 8971 19777 727 1602 280 11,02 28 16,3 16,0 35,5 0,49 4,80 kg w/o extension zip
- VNG 60 C 10808 23828 865 1906 280 11,02 30 16,3 16,0 36,0 0,59 5,75 kg w/o extension zip
- VNG 70 C 15516 34206 1177 2595 280 11,02 32 20,0 20,0 47,5 0,85 8,96 kg w/o extension zip
- VNG 80 C 19215 42362 1537 3389 400 15,75 40 25,4 25,0 60,0 1,51 20,00 kg w/o extension zip
- VNG 95 C 28021 61776 2168 4779 310 11,20 45 35,0 35,0 70,0 1,70 30,73 kg w/o extension zip


(1) At 350 bar (5000 PSI) and no gas pressure. At 500 bar (7150 PSI) for carbon vang
(2) At 30 bar (435 PSI) gas pressure. Return force can vary with gas pressure
(3) Weight for minimum length as example, please calculate the exact weight using the following formulas:
a. Wkg=(PCLCmm x a) + c (PCLC is the vang length pin to pin cylinder closed in mm)
b. Wlb=Wkg x 2,205
