Magic Puller

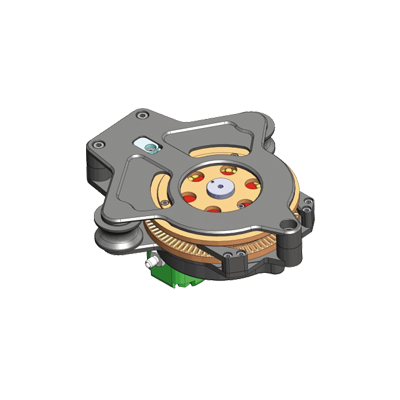

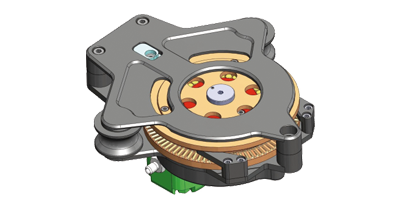

It is composed by an hydraulic engine matched together with a pulley or with an high strength rubber chain. This compact system is driven by a manifold which controls the speed of the system, in order to keep load on the sheet in every circumstance.

MODEL	Overall dimensions		Sheet Ø (1)		Weight		Working pressure		Note
MODEL	mm	in	mm	in	kg	lb	bar	psi

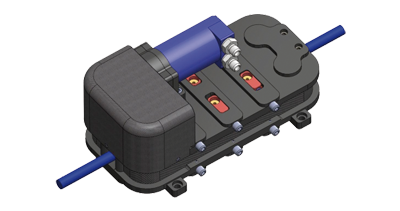

	337 x 180 x 139 (h)	13,3 X 7,1 X 5,5 (h)	20	0,78	8,5	18,7	140	2000	For line arrangement. Under the deck mounting position.
	302 X 283 X 164 (h)	11,9 X 11,1 X 6,45 (h)	20	0,78	7,65	16,8	250	3570	For step block Arrangement. Deck mounting position.

(1) Custom models available for bigger sheet diameter

Download Technical Sheet
