Quad Line

This set starts from the same mechanism of race line valves, to offer an hi-tech manual control for a cruise-race sailing yacht.
A maximum pressure valve for each function improves the reliability and protects rams and hoses from overpressure. They can run at 700bar (10.000PSI) with a max flow of 8 lpm.

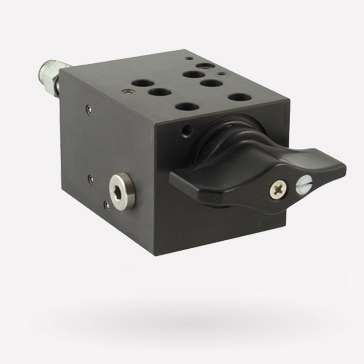

Manual Single Valve

Max working pressure: 700 bar (10.000PSI)
Weight: 0,76kg (1,68lbs)
Max oil flow: 8lpm
Black hard coated aluminium
Hold - pump - release positions
20-700 bar max adjustable max pressure valve
Flow release control
7/16” JIC UNF 37° stainless steel fitting
Polished stainless steel knob available on request

*Custom fittings available on request (1/4''BSPP - 9/16'' JIC UNF 37° - 3/8'' BSPP)

All the valve types can be placed on linear sensor crossed aluminium manifold for standard or custom manual panel

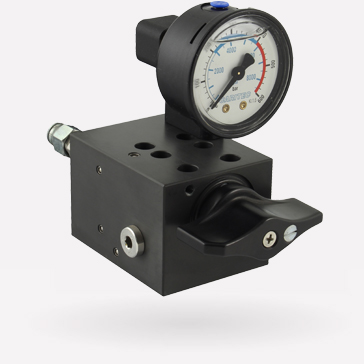

Manual Single Valve with max pressure valve

Max working pressure: 700 bar (10.000PSI)
Weight: 0,84kg (1,85lbs)
Max oil flow: 8lpm
Black hard coated aluminium
Hold-pump-release positions
20-700 bar max adjustable max pressure valve
0-600 bar analogical pressure gauge
7/16” JIC UNF 37° stainless steel fitting*
Polished stainless steel knob available on request

*Custom fittings available on request (1/4''BSPP - 9/16'' JIC UNF 37° - 3/8'' BSPP)

All the valve types can be placed on linear sensor crossed aluminium manifold for standard or custom manual panel

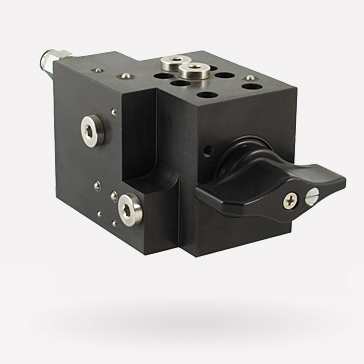

Manual Double Valve

Max working pressure: 700 bar (10.000PSI)
Weight: 1,09kg (2,41lbs)
Max oil flow: 8lpm
Black hard coated aluminium
Hold - pump A - pump B positions
20-700 bar max adjustable max pressure valve
Flow release control
7/16” JIC UNF 37° stainless steel fitting nboth for A and B port
Polished stainless steel knob available on request

*Custom fittings available on request (1/4''BSPP - 9/16'' JIC UNF 37° - 3/8'' BSPP)

All the valve types can be placed on linear sensor crossed aluminium manifold for standard or custom manual panel

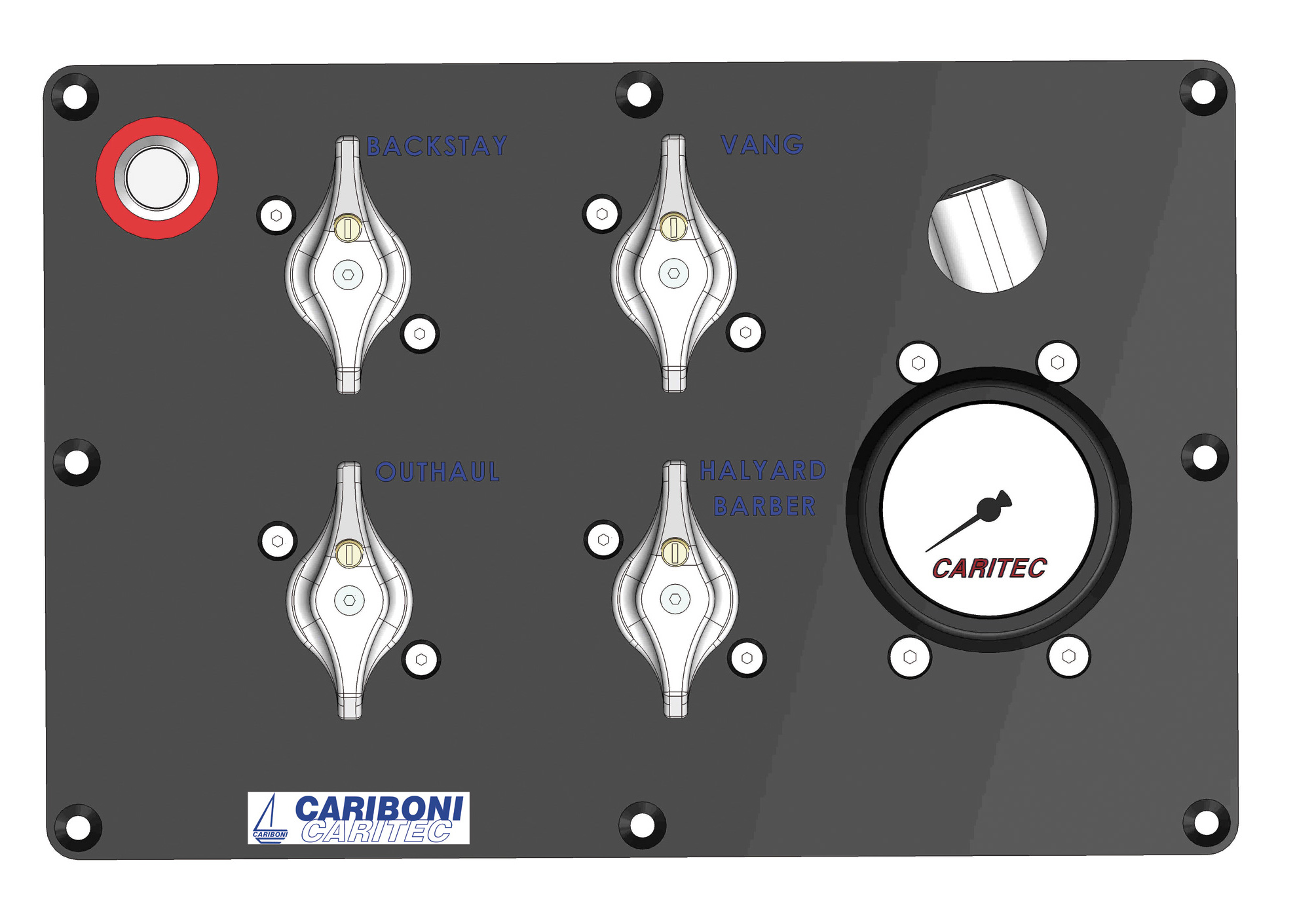

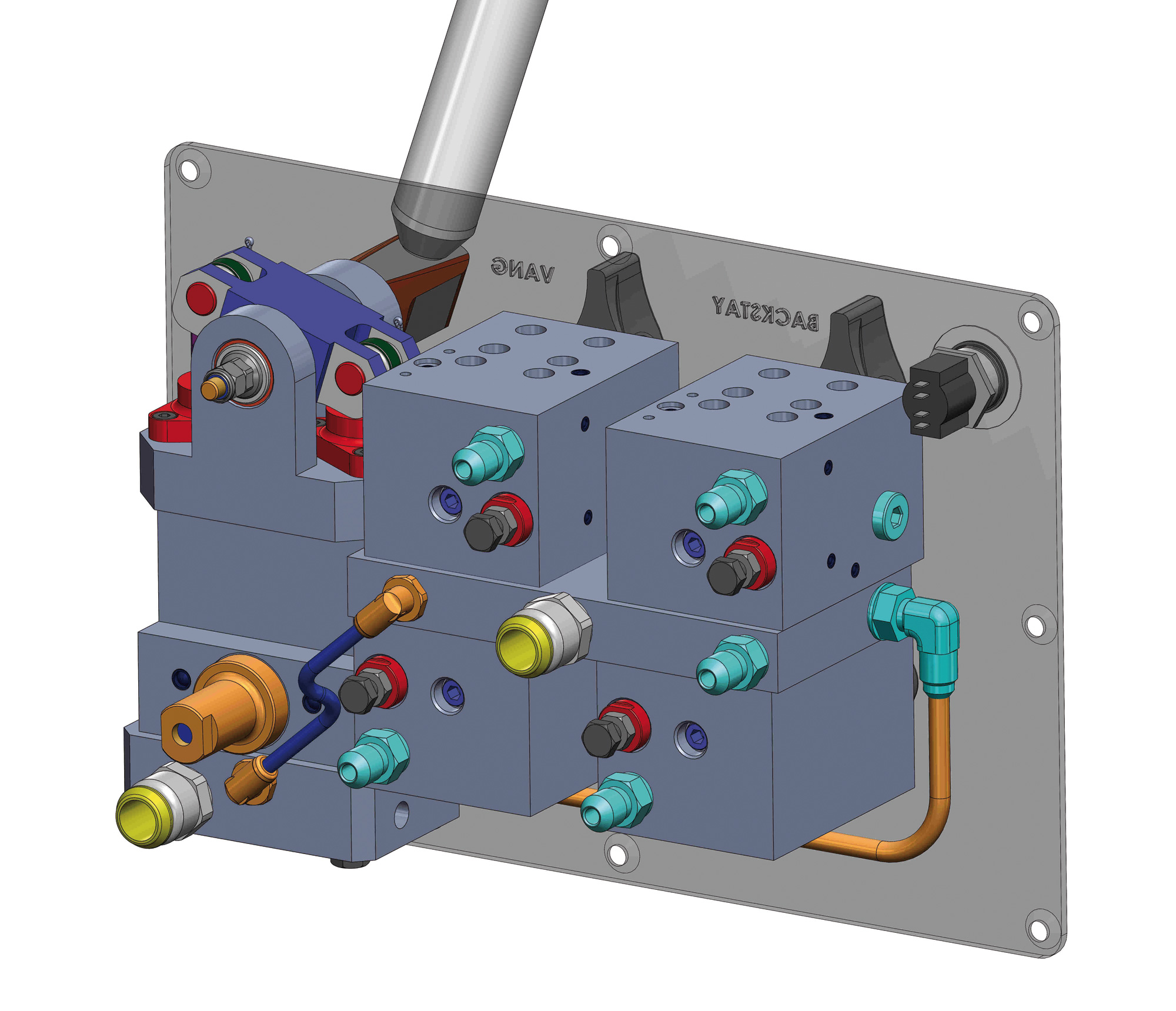

Quad Line Panels

Quad line panels are the CARIBONI-CARITEC compact offer for race-cruising yachts. Thanks to the new valve design, Quad panel are very compact and can be installed on any kind of boat.
Shape and dimensions depend on the number of valves and pressure gauges installed on it. We offer a slim 2 valves panel (single valve, double or mixed), a BP3, BP4, BP5 (3, 4 or 5 single valves) or custom solution with 10 valves or more on the same panel. A QUAD LINE single or double manual pump (see “Manual Pump” paragraph for further information) can be added on every panel.
